#2 304 Stainless Steel Bag Filter Housing w/Mesh, 2" NPT Inlet/Outlet, 150 PSI High Pressure Bag Water Filter Purification Equipment Industrial Filtration System

About this item

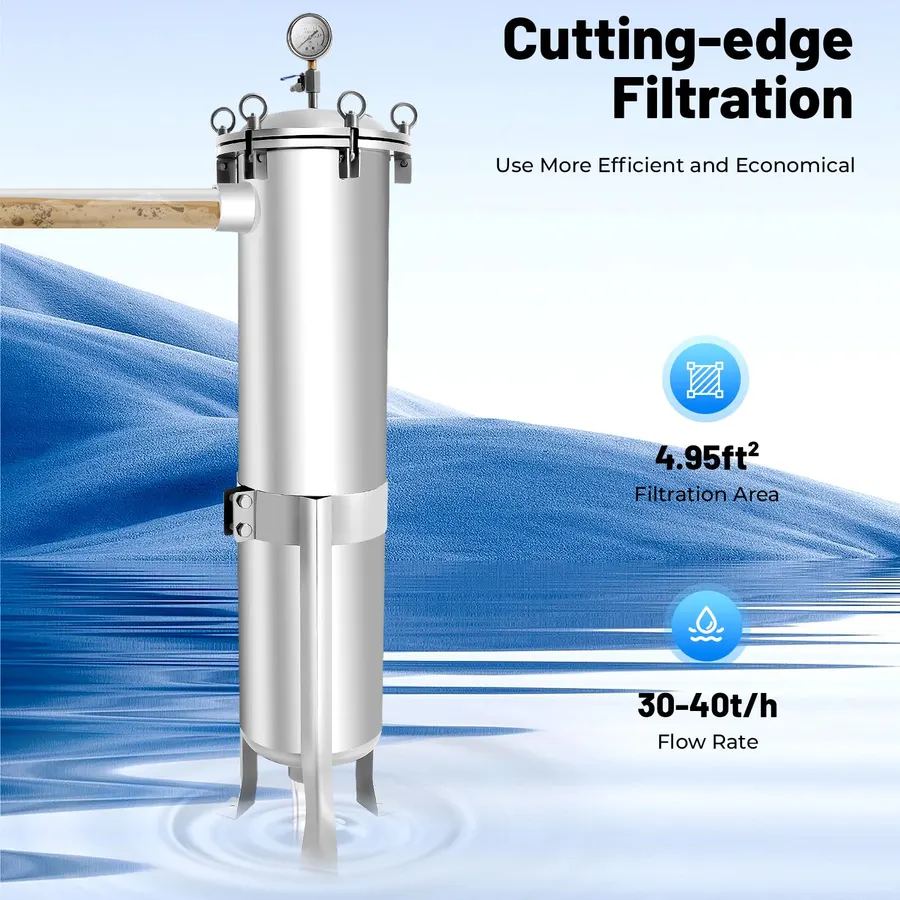

• ➤【Efficient Filtration】The 7.1x31.9 inch filter bag has a high filtration area of 4.95 square feet. The filtrate flows into the filter bag from the side inlet of the filter housing, allowing the liquid to flow from high to low so that the filter bag is not affected by turbulence, which improves the filtration efficiency and service life.
• ➤【Real-time Monitoring】This product is equipped with an excellent shock-resistant pressure gauge with 2.5-level accuracy and 1.0MPa measurement range, which is convenient for real-time and accurate monitoring of internal pressure and timely release of excess pressure.

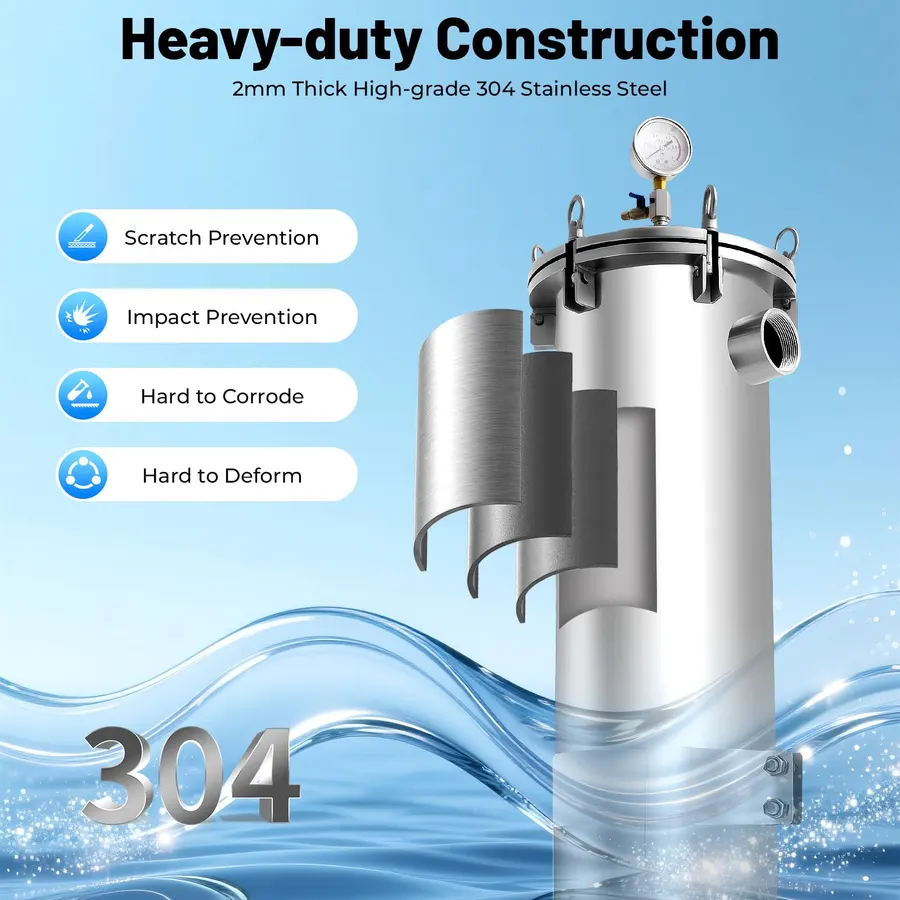

• ➤【Excellent Performance】The filter unit mainly consists of the filter barrel body, the filter drum cover, the quick-opening mechanism, and the stainless steel filter bag reinforcing mesh basket. The filter bag installed in the reinforced mesh basket can effectively intercept the impurity particles, and the qualified filtrate can be obtained after the liquid penetrates the filter bag of the required fineness level, thereby achieving the effects of liquid filtration, purification, separation, and recovery.
• ➤【Adjustable Height】You can adjust the overall height of the product(45.1-52.9 inches) by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet.
