Supports AMD Ryzen 9000/8000/7000 Series Processors (AM5)
Ranked #99 in PC Parts · 4 things we like

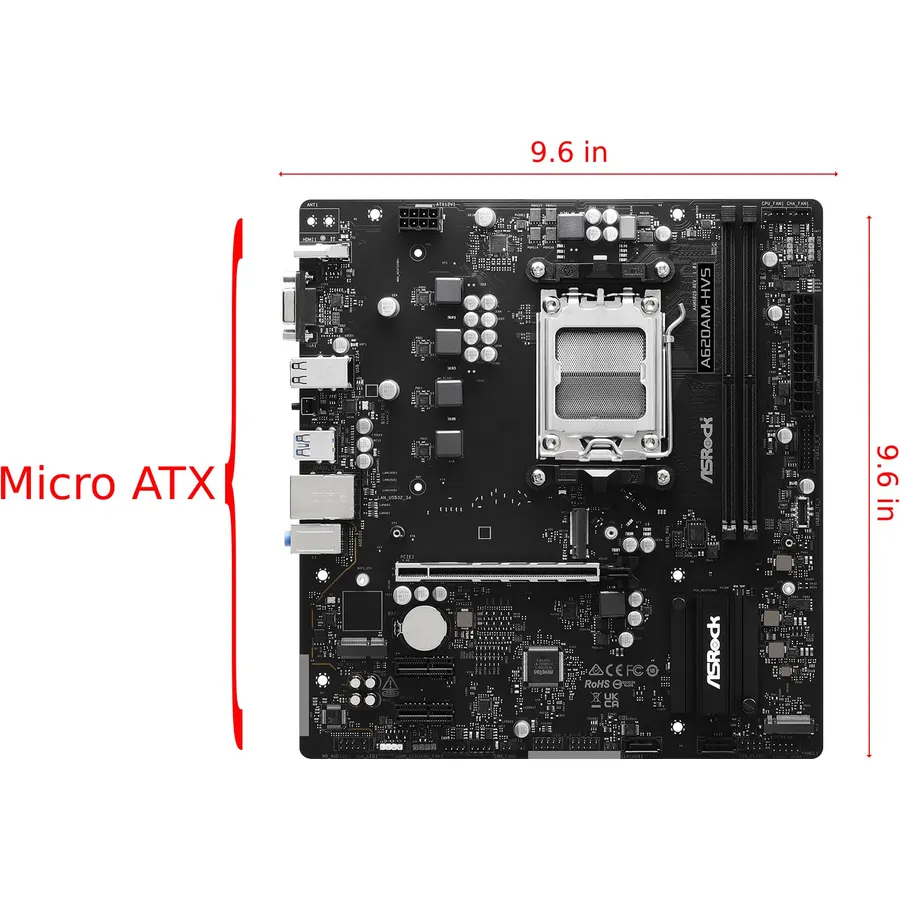

Socket: AM5 Ryzen 9000 / 8000 / 7000 Series Processors Chipset: AMD A620A Form Factor: MicroATX Memory Specifications 1: 2 x DDR5 Memory Specifications 2: Dual Channel DDR5 Memory Technology. - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* - Maximum capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Power Phase: 4+1+1 Power Phase, Dr. MOS for Vcore GPU functionality: Integrated AMD RDNATM graphics (Actual support may vary by CPU).
Graphics Output: HDMI, D-Sub [PCIE] 1 PCIe 4.0 x16 【PCIE x 1】2 PCIe 3.0 x1 OC: [SLI] - Cross Fire: Sound Function: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio USB 2.0: 8 USB 2.0 (4 Rear, 4 Front) USB 3.2 Gen1 (USB3.0) 5Gb/s) 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 【Thunderbolt 4 Header】- [SATA3] 2 M.2 Slots: 1
Do Best Deal is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases. If you buy through links on this site we may earn a commission, at no extra cost to you. Learn more.
Product information
24 specifications
Processor Socket
Socket AM5
Compatible Devices
Personal Computer
RAM Memory Technology
DDR5

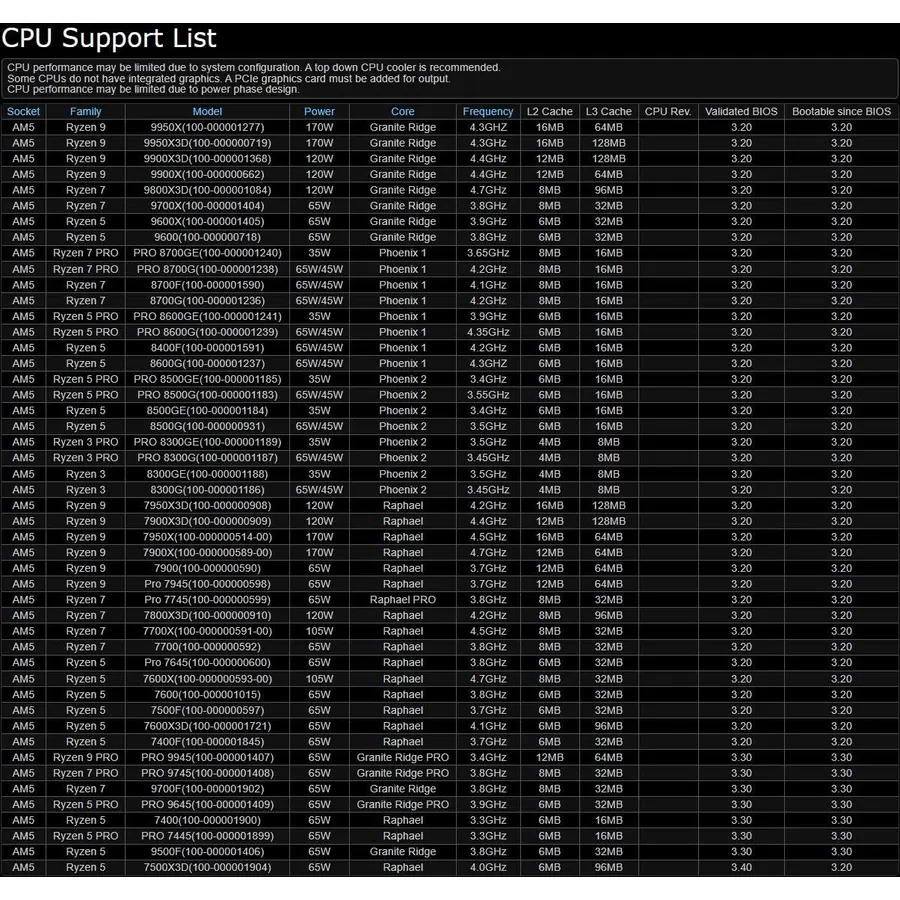

Compatible Processors
AMD Ryzen 9000, AMD Ryzen 8000, AMD Ryzen 7000
Chipset Type
AMD A620
Memory Clock Speed
6800 MHz
Platform
Windows 10, Windows 11
CPU Model
Ryzen 7
Memory Storage Capacity
64 MB
Ram Memory Maximum Size
128 GB
Main Power Connector Type
24-Pin
Graphics Card Interface
PCI Express
Memory Slots Available
2
Number of Ports
20
System Bus Standard Supported
SATA 3
Total SATA Ports
2
Total Usb Ports
4
Number of Ethernet Ports
1
Total Number of HDMI Ports
2
Total PCIe Ports
3
Chipset Family
AMD A620
Brand
ASRock
Model Name
A620A
Model Number
A620AM-HVS
Pros & cons
What we like
Supports AMD Ryzen 9000/8000/7000 Series Processors (AM5)
Built-in A620A chipset Micro-ATX motherboard
Equipped with two types of connectors: HDMI and D-Sub
USB 3.2 Gen1 Type-C for data transfer up to 5 Gbps
