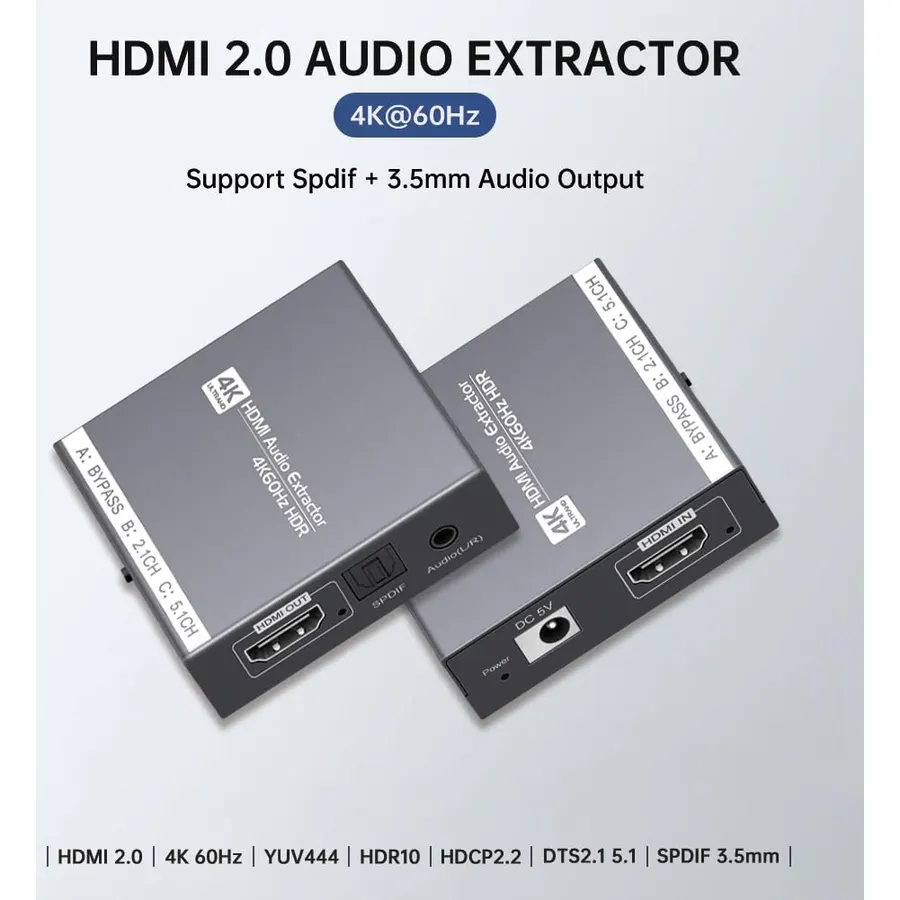

HDMI 2.0 Audio Extractor 4K 60Hz, HDMI to Optical and 3.5mm Audio Adapter for PS4/5, Fire Stick, Speakers, Headphones, Blu-ray Player

I use a similar device to extract audio data from the HDMI feed off of my Google Chromecast, then send the audio to a high-end Digital Analog Converter (DAC) for playing through my hi-fi stereo system. One important point to note is that digital audio output (SPDIF standard) on this RYXN device is just optical. You cannot connect an RCA coax cable. Unknown to me when I received this item was that my DAC has a broken optical input. Therefore I cannot connect this device. So the lack of a SPDIF coax output is unfortunately a showstopper in my situation. Nice metal case construction. Rated only o

This audio extractor is unable to pass through any HDMI signal or to extract audio when the signal’s source is an Apple TV 4K model. The best it can manage is a few seconds before the “no signal on HDMI) message reappears on the TV each time the audio format slider is moved.The same HDMI cables with an HDMI-HDMI joiner connector work just fine. The product page’s audio setting (Dolby Digital) has no beneficial effect. Setting the Apple TV to 1080i or 720p had no effect. My best guess is that the version of HDMI HDCP on this device is either an older version of the protocol that’s been blocked

The "RYXN HDMI 2.0 Audio Extractor 4K 60Hz" can extract audio from a video stream carried on the HDMI cable from a source to the TV or an A/V receiver. The signal extracted can be 2.1 or 5.1 channel of audio.I tested this unit on an Amazon FireTV 4K Max Stick and it worked very well. If the Fire TV 4K Max Stick is set to PCM only, the output signal from the RYXN HDMI 2.0 Audio Extractor is always 2.1 PCM. If the Fire TV Stick is set to Dolby Digital Plus, there is no signal on the bypass mode. The signal from the 2.1 mode is PCM and the signal from the 5.1 mode is Dolby Digital Plus.I also tes

Very handy and easy to use. Great quality materials, super durable metal box. Really helped set up my audio and video in my guest room in a pinch. Super easy to use just connect to power source and plug in your devices!

I got this converter to use my graphics card for computer sound and play it through analog speakers. The review is written for this use case.ProsWell-build metal box. Can work without power source (apparently).ConsDoes not work out of the box - additional hardware needed. Manual is useless and does not provide much needed details.Some Technical DetailsI connected HDMI output of the graphics card to HDMI input of the extractor, and plugged analog playback into analog out. This does not work! The only way to make it work is to also connect a device capable if audio playback to the HDMI output of

I really hate giving this type of review but this audio splitter was very poor. I would get part of the audio stream or none at all.

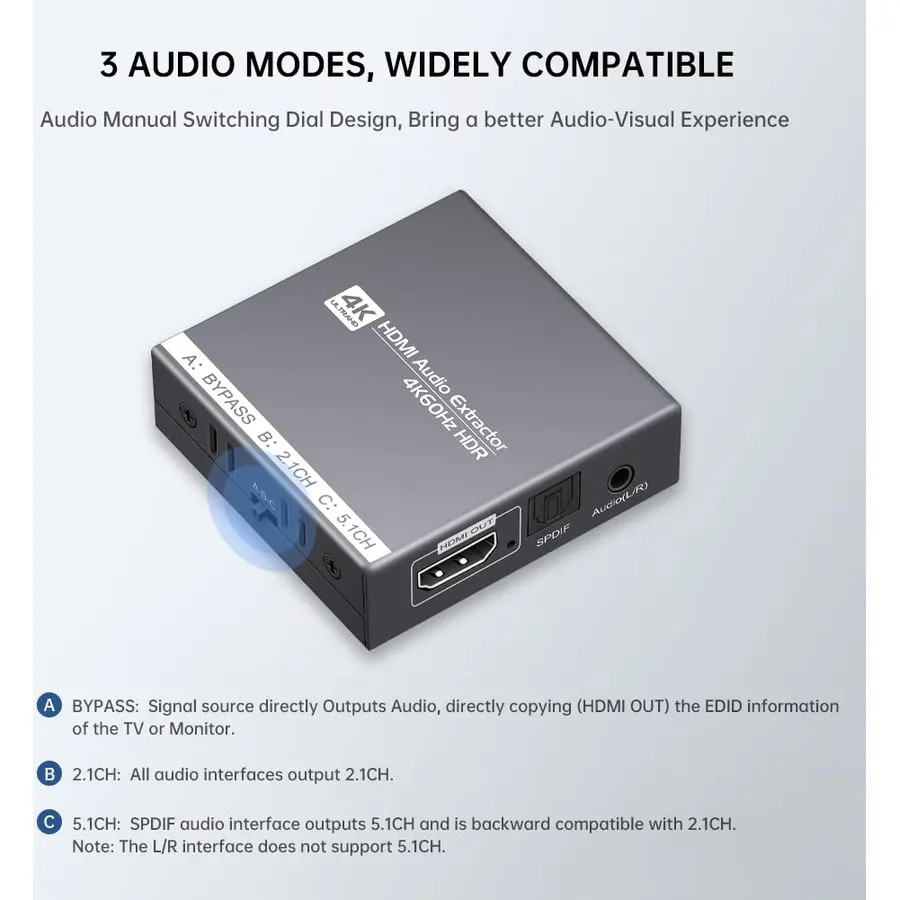

Very small, so it will not stick out like a sour thumb. It works exactly as designed: It will pass through the HDMI video and redirects Audio to the Optical port. It has a physical setting for 5.1 to the Optical port. I have an older similar type of HDMI extractor and you have to choose 5.1 either with a push button or little remote and it does not remember this setting when the power is unplugged or lost. This is why I love this new HDMI Extractor, because when power goes out, you unplug it for any reason, the physical switch will always be set as your liking (in my case 5.1).It is a strong p

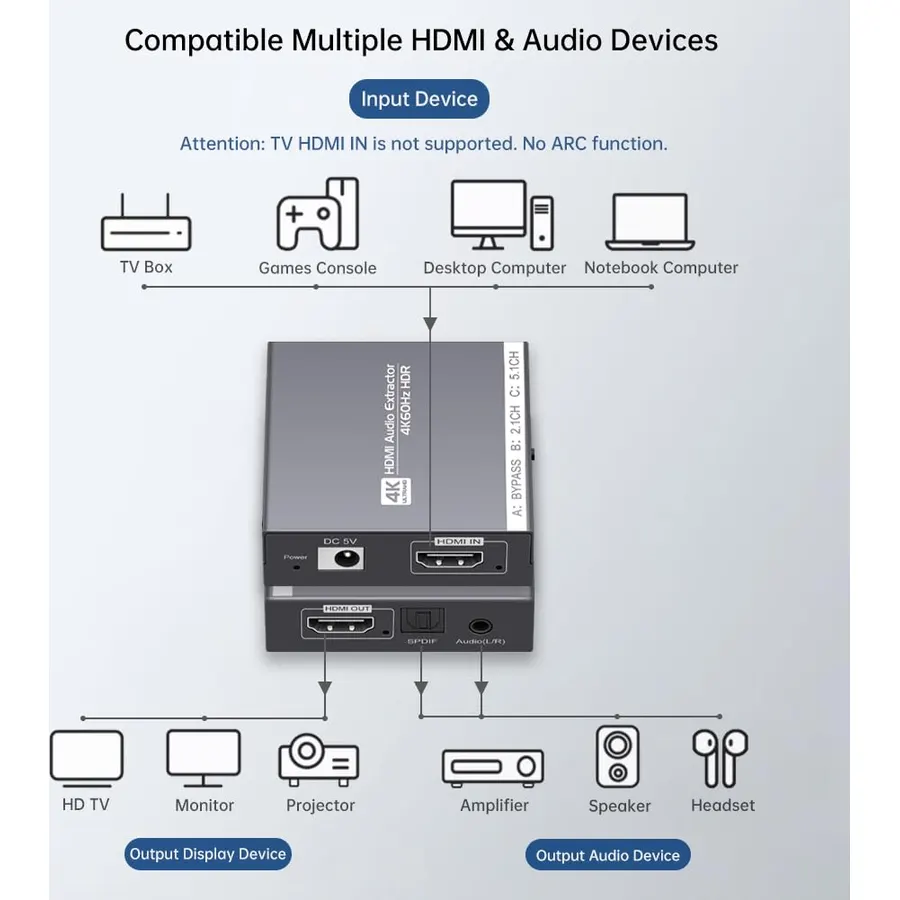

This device was made to extract the audio from an HDMI stream, but not from a television. I was able to get a Firestick to send its output to this device. The device then forwarded the audio and the video to an HDMI input on a computer monitor. It simultaneously sent the audio to its 3.5 mm stereo output jack. It has a selector switch to choose between pass, 2 channel, and 5.1 channel output. I was using the 2 channel option and monitored the output on a good headset that was plugged into the 3.5 mm jack. At the same time the monitor was using its own audio out capability to send the signal to
