4K 12MP IP Camera Tester, WANLUTECH 8'' Touchscreen CCTV Test for 8MP TVI CVI AHD CVBS Cameras DMM OPM VFL Cable Tracer SFP Test RJ45 Cable TDR Test Network Testing Tool HDMI VGA (E90)
[ IP Analog Camera Tester ] WANLUTECH IP camera tester has 8'' touchscreen, 1920x1200 resolution. It supports to test max 4K 12MP IP cameras
About this item

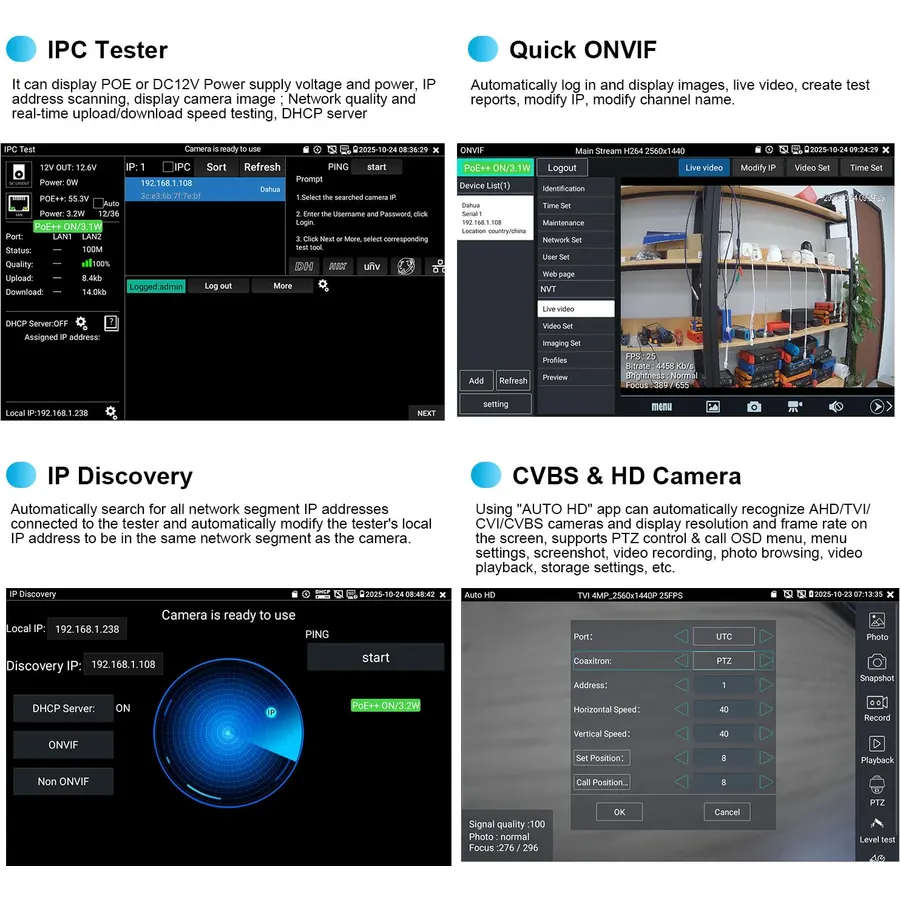

[ IP Analog Camera Tester ] WANLUTECH IP camera tester has 8'' touchscreen, 1920x1200 resolution. It supports to test max 4K 12MP IP cameras, support CVBS analog camera test. The CCTV tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test/IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK
[ AHD TVI CVI Camera Tester ] WANLUTECH CCTV camera tester supports to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc

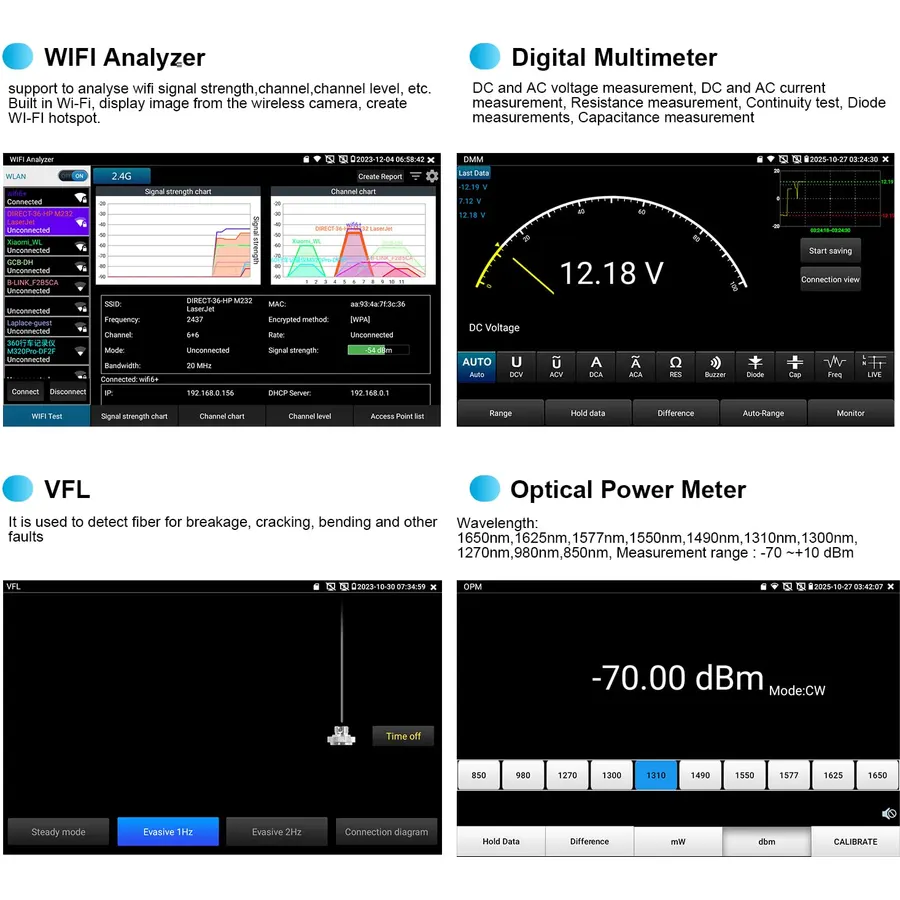

[ DMM & SFP & OPM & VFL ] Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement. It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing. Optical Power Meter: connecting the measured fiber to the "OPM" port displays the optical power linearly or nonlinearly for direct measurement of optical power, as well as for relative measurement of fiber link loss. VFL, it is used to detect fiber for breakage, cracking, bending and other faults
[ Cable Tracer & Cable Tester ] Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test network cable pair status, length (up to 180 meters), attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters

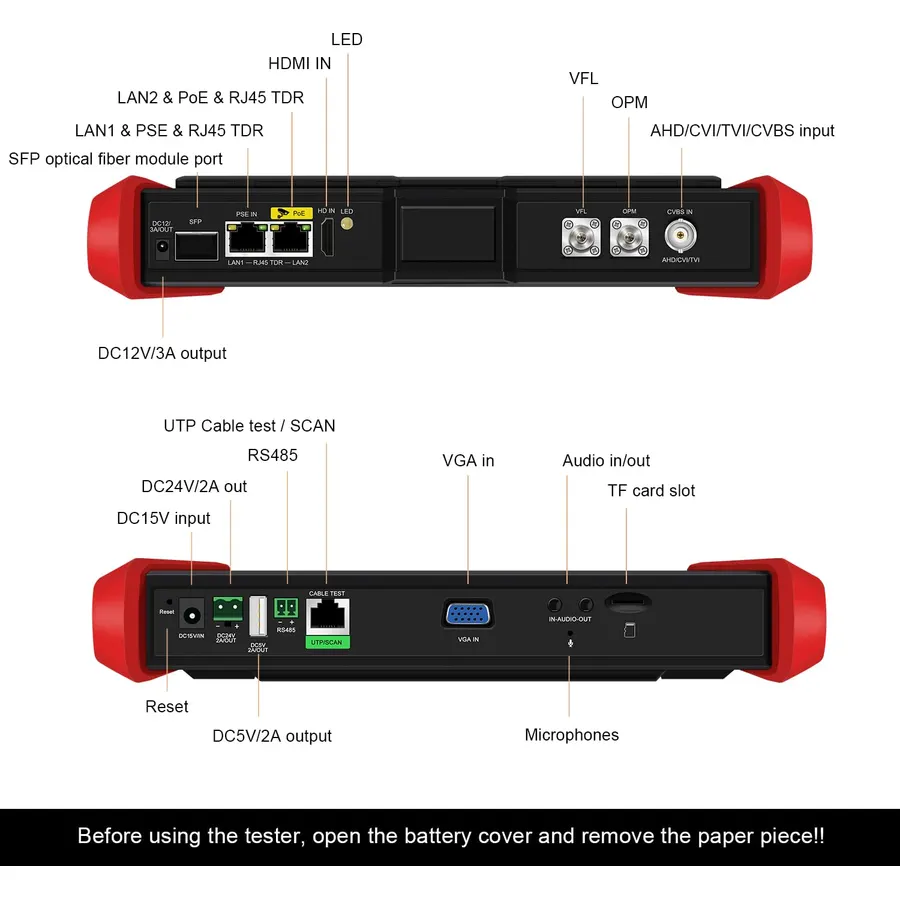

[ Multifunction CCTV Monitor Tester ] RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive, HDMI in, VGA in, Audio I/O, RS485, WiFi analyzer. Network Tools: IP scan, PING test, PPPOE, trace route, link monitor, DHCP server, port flashing, etc. PoE Detection: measurement POE switch or PSE power supply voltage and cable connection status. Power Output: max 55V 90W POE++ power output, DC12V 3A, DC24V 2A, DC5V 2A, power input: DC15V 1.6A
[ IP Analog Camera Tester ] WANLUTECH IP camera tester has 8'' touchscreen, 1920x1200 resolution. It supports to test max 4K 12MP IP cameras
Ranked #99 in Networking · 4 things we like
[ IP Analog Camera Tester ] WANLUTECH IP camera tester has 8'' touchscreen, 1920x1200 resolution. It supports to test max 4K 12MP IP cameras, support CVBS analog camera test. The CCTV tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc.
Support IPC Test/IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK [ AHD TVI CVI Camera Tester ] WANLUTECH CCTV camera tester supports to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc [ DMM & SFP & OPM & VFL ] Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance meas
Do Best Deal is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases. If you buy through links on this site we may earn a commission, at no extra cost to you. Learn more.
Product information
8 specifications
Minimum Operating Voltage
15 volts_of_direct_current
Compatible Devices
IP cameras, AHD cameras, TVI cameras, CVI cameras, CVBS cameras, SFP optical fiber modules, RJ45 network cables, BNC cab
Brand Name
WANLUTECH
Unit Count
1 Count
Number of Items
1
Warranty Description
1 year
Included Components
cctv tester+accessories
Part Number
E90
Pros & cons
What we like
[ IP Analog Camera Tester ] WANLUTECH IP camera tester has 8'' touchscreen, 1920x1200 resolution. It supports to test max 4K 12MP IP cameras, support CVBS analog camera test. The CCTV tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test/IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK
[ AHD TVI CVI Camera Tester ] WANLUTECH CCTV camera tester supports to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc
[ DMM & SFP & OPM & VFL ] Digital Multimeter: DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement. It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing. Optical Power Meter: connecting the measured fiber to the "OPM" port displays the optical power linearly or nonlinearly for direct measurement of optical power, as well as for relative measurement of fiber link loss. VFL, it is used to detect fiber for breakage, cracking, bending and other faults
[ Cable Tracer & Cable Tester ] Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test network cable pair status, length (up to 180 meters), attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters
Breakdown from the 3 most helpful reviews we imported.
J
Julio
Verified purchaseAugust 3, 2026
Excelente y completo probador de cámaras y red LAN
Lo compre recientemente, para el trabajo el empaque es bastante completo incluye todos los accesorios y las funciones que trae el dispositivo son bastantes completas y de mucha utilidad para el trabajo que realizo, desde comprobador de cables de red LAN, probador de cámaras y una buena cantidad de herramientas que te ayudan a diagnosticar y resolver problemas con un solo dispositivo, falta probarlo más a fondo pero es una compra recomendada, incluye hasta tester y el dispositivo se siente de buena calidad y muy robusto.
₽
₽яоdigч
August 23, 2026
A time saver for CCTV installs
This is one solid, reliable multi-tool that will save you endless trips up the ladder. The amount of functions packed in this rugged tablet-style tool is amazing, it almost sets a new definition to the word versatile!The 8-inch touchscreen is crisp, responsive, and easy to read even when working in direct sunlight. If you’ve ever had to balance on a ladder while trying to adjust camera angles or test IP lines using a small, washed-out screen or a bulky laptop, you know the struggle, this thing fixes that completely.It handles IP, coaxial, AHD, TVI, and CVI without missing a beat, and the PoE
C
Chevelle life
May 15, 2026
The most powerful and useful field tool I’ve ever owned
This thing is an absolute beast. I’m not exaggerating when I say this may be the most powerful, smart, and genuinely useful field tool I’ve ever owned in my career.Honestly, I wish I had something like this when I was first starting out in IT and low voltage work because it would have completely changed how fast and efficiently I could troubleshoot problems. Having this in the field feels like carrying an entire network and CCTV toolbox in one device.The amount of functionality packed into this tester is insane. IP camera testing, analog camera testing, PoE testing, cable tracing, fiber tools,
