ASRock B650M-HDV M.2 White Micro-ATX AM5 Motherboard, AMD Ryzen 9000/8000/7000, PCIe 5.0 x16, DDR5 8200+(OC), Dual M.2 (Gen5/Gen4), USB 3.2 Type-C, 2.5G LAN

***Not compatible with all built-in computers or systems

Processor SocketSocket AM5Memory Clock Speed8200 MHzRam Memory Maximum Size128 GBMemory Slots Available2System Bus Standard SupportedSATA 3Total SATA Ports4

About this item

  • ***Not compatible with all built-in computers or systems

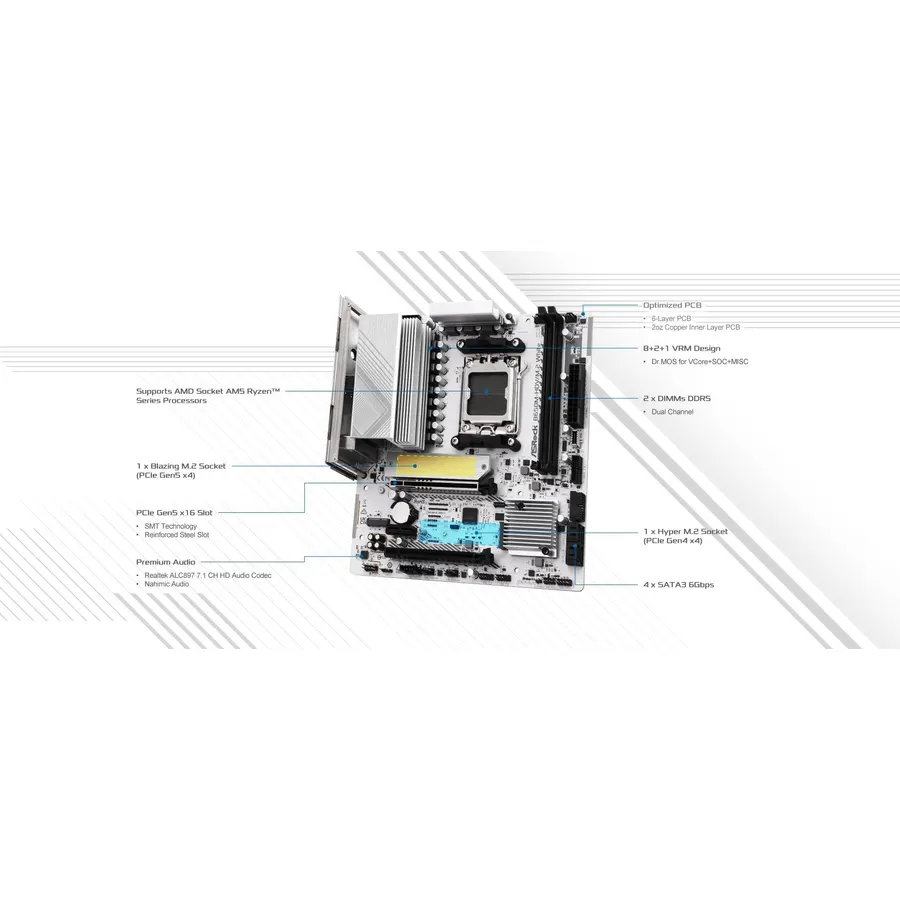

  • ⚪ Striking White Design & AM5 Power: Supports AMD Ryzen 9000, 8000, and 7000 Series CPUs with an 8+2+1 phase Dr.MOS power design in a sleek white Micro-ATX PCB.
  • 🚀 PCIe 5.0 & Next-Gen Expansion: Features a Blazing PCIe 5.0 x16 slot for top-tier GPUs, plus PCIe 4.0 x16, x1 slots, and M.2 Key E for optional WiFi.
  • 💾 Ultra-Fast Storage: Equipped with dual M.2 slots (1x PCIe Gen5x4, 1x PCIe Gen4x4) and four SATA3 ports for extensive SSD/HDD storage.
Category: PC PartsMotherboardsRanked #99 of 616 in PC Parts
8.2Our score
Our verdict

***Not compatible with all built-in computers or systems

Ranked #99 in PC Parts · 4 things we like

Quick answer The ASRock B650M-HDV M.2 White Micro-ATX AM5 scores 8.2/10 with us. Amazon owners rate it 4.1 out of 5 across 428 reviews, below the 4.3 average of the 147 motherboards we track. It was listed at $99.99 on Amazon when we last checked in September 2026. Key facts: processor socket Socket AM5, memory clock speed 8200 MHz, ram memory maximum size 128 GB.

Unlock the power of AMD's AM5 platform with the ASRock B650M-HDV M.2 White motherboard. Engineered for Ryzen 9000, 8000, and 7000 Series processors, its robust 8+2+1 phase Dr. MOS power design ensures stable performance for gaming and productivity.

Dual DDR5 DIMM slots support speeds up to 8200+ (OC), while versatile graphics outputs (HDMI, DisplayPort) cater to modern displays. Experience next-gen expansion with a primary Blazing PCIe 5.0 x16 slot for flagship GPUs, plus secondary PCIe 4.0 slots and an M.2 Key E for WiFi flexibility. Maximize storage potential with a cutting-edge PCIe Gen5x4 M.2 slot and a PCIe Gen4x4 M.2 slot, delivering blistering SSD speeds alongside four SATA3 ports for HDDs.

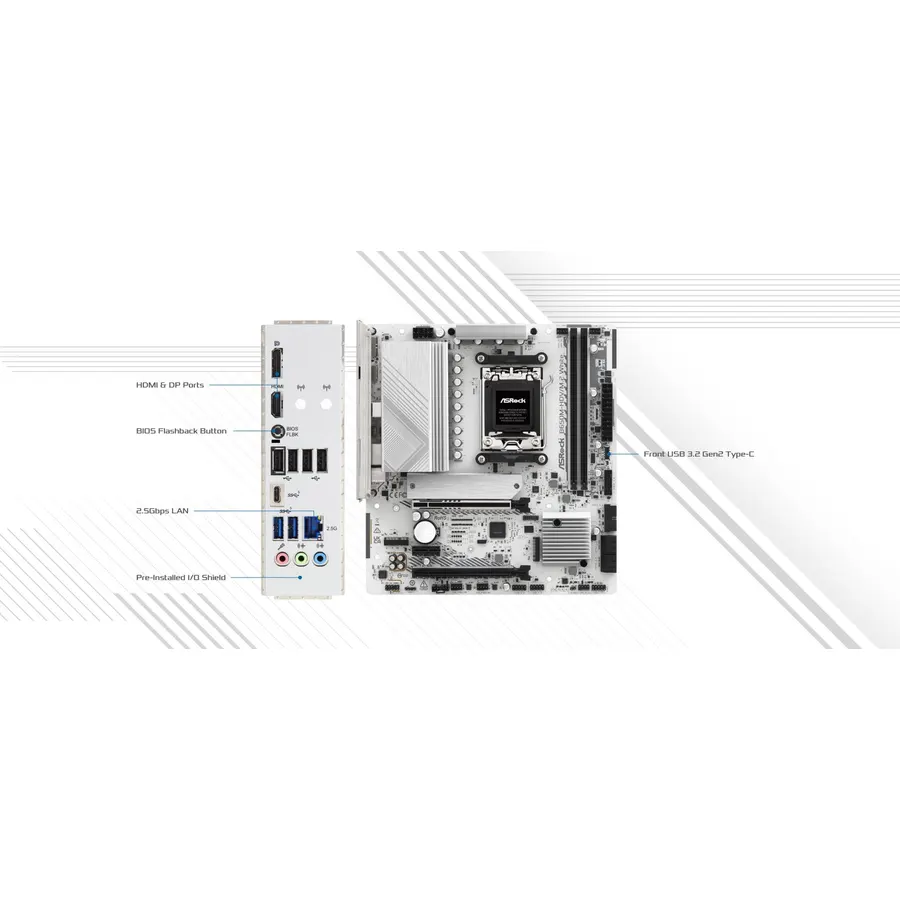

Connectivity excels with front/rear USB 3.2 Gen2 Type-C ports, six USB 3.2 Gen1 ports, and eight USB 2.0 ports. Enjoy high-fidelity audio via the Realtek ALC897 7.1-channel codec enhanced by Nah

Do Best Deal is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases. If you buy through links on this site we may earn a commission, at no extra cost to you. Learn more.

Product information

24 specifications
Processor SocketSocket AM5
Compatible DevicesPersonal Computer
RAM Memory TechnologyDDR5
Compatible ProcessorsAMD Ryzen 9000/8000/7000 Series
Chipset TypeAMD B650
Memory Clock Speed8200 MHz
PlatformWindows 10, Windows 11
CPU ModelRyzen 7
Ram Memory Maximum Size128 GB
Main Power Connector Type24-Pin
Graphics Card InterfaceIntegrated, PCI Express
Memory Slots Available2
Number of Ports24
System Bus Standard SupportedSATA 3
Total SATA Ports4
Total Usb Ports16
Number of Ethernet Ports1
Total Number of HDMI Ports1
Total PCIe Ports3
Chipset FamilyAMD B650
BrandASRock
Model NameB650M-HDV/M.2 WHITE
Model Number90-MXBT40-A0UAYAZ
Unit Count1 Count

Pros & cons

What we like
  • ***Not compatible with all built-in computers or systems
  • ⚪ Striking White Design & AM5 Power: Supports AMD Ryzen 9000, 8000, and 7000 Series CPUs with an 8+2+1 phase Dr.MOS power design in a sleek white Micro-ATX PCB.
  • 🚀 PCIe 5.0 & Next-Gen Expansion: Features a Blazing PCIe 5.0 x16 slot for top-tier GPUs, plus PCIe 4.0 x16, x1 slots, and M.2 Key E for optional WiFi.
  • 💾 Ultra-Fast Storage: Equipped with dual M.2 slots (1x PCIe Gen5x4, 1x PCIe Gen4x4) and four SATA3 ports for extensive SSD/HDD storage.
What could be better

    ASRock B650M-HDV M.2 White Micro-ATX AM5: questions & answers

    Is the ASRock B650M-HDV M.2 White Micro-ATX AM5 worth buying?

    Yes, for most buyers it is a safe choice. We score the ASRock B650M-HDV M.2 White Micro-ATX AM5 8.2 out of 10. Amazon owners rate it 4.1 out of 5 across 428 reviews, below the 4.3 average of the 147 motherboards we track.

    How much does the ASRock B650M-HDV M.2 White Micro-ATX AM5 cost?

    It was listed at $99.99 on Amazon when we last checked in September 2026. That is cheaper than the $183.99 median for motherboards in our catalog. Amazon prices change daily, so use the price button on this page to see the current figure.

    What options does the ASRock B650M-HDV M.2 White Micro-ATX AM5 come in?

    Amazon lists 2 options. Color: White, Black. Pick an option on this page and the button opens exactly that model.

    What are the key specs of the ASRock B650M-HDV M.2 White Micro-ATX AM5?

    Processor Socket: Socket AM5; Memory Clock Speed: 8200 MHz; Ram Memory Maximum Size: 128 GB; Memory Slots Available: 2; System Bus Standard Supported: SATA 3; Total SATA Ports: 4. All 24 specifications are in the product information table on this page.

    What are good alternatives to the ASRock B650M-HDV M.2 White Micro-ATX AM5?

    Similar, well-rated motherboards in our catalog: ASRock B650M Pro X3D WiFi 6E AMD AM5 Micro-ATX (9.2/10, 4.6 stars from 79 owners); ASUS X870 AYW Gaming WiFi W AMD X870 AM5 ATX (9.8/10, 4.4 stars from 144 owners); ASUS ROG Strix B650-A Gaming WiFi AMD B650 AM5 (9.0/10, 4.5 stars from 1,240 owners).

    Customer reviews

    All reviews on Amazon
    4.1428 global ratings
    5 star60%
    4 star10%
    3 star0%
    2 star10%
    1 star20%

    Breakdown from the 10 most helpful reviews we imported.

    C
    C0RR0SIVE
    Verified purchaseMay 6, 2026
    Best bang for buck board IMO

    It's a decent little motherboard, zero issues out of the box. So far I have ran this for 5 days straight with no crashing and very consistent performance.I do wish this had some RGB/ARGB headers, but this is a "budget" board. Oh how I remember when mid-range and premium boards didn't cost much more than this. Wouldn't have costed them but a few cents to add a chip for ARGB, but I guess keeping your market segments as segregated as possible is a little more important these days.Who ever really heard of a budget board that has a dedicated wifi card slot and built in IO shield, but no RGB headers

    E
    Electrosoft
    Verified purchaseDecember 22, 2023
    Great board to diagnose my components

    I actually picked this up open box from Amazon Warehouse. They are hit or miss as always, but this was a solid hit. Board arrived basically brand new but with a damaged box.My main x670E system suddenly died and I had no idea what worked or what did not so I picked up this little gem to test my X670E motherboard components ( 7800X3D, 2x sets of DDR5, 980 Pro SSD, etc...)Good news is this board works great and booted right up with all my components. Bad news is my X670E board is dead.As for this board itself, it is no frills but working fine. It does have a set of diagnostic LEDs on the bottom

    T
    The Gamepad Guru
    Verified purchaseDecember 30, 2025
    This is the best gaming motherboard with none of the gamer slop.

    This is THE best AM5 board with none of the "gamer slop" seen on many other boards. No RGB header. No gamer VRM'S. No pretty colors on the board. What it does do, it does well.Support for Ryzen 7000, 8000 & 9000 CPU's? Check.Two M.2 sockets with one being Gen 5? Check.M.2 Key for adding Wifi? Check.I have mine paired with a Ryzen 7 7700X and it's been rock solid since 2023 and with a M.2 SSD, it boots under 10 seconds. Highly recommended.

    J
    James T.
    Verified purchaseApril 30, 2026
    Motherboard Failure After a few Months.

    I purchased this ASRock B650 in 2025, and while it worked fine initially, it began a slow death crawl just a few months later.The Red Flags:It started when I tried to use the Windows 11 'Reset this PC' feature. Every time the system attempted a reset, the board would hang on a black screen. The only way to get back into the OS was a hard power cycle. I initially thought it was a Windows bug, but it was actually the board's inability to handle the warm reboot/handoff process.The Total Failure:A few weeks after the reset issues began, the board stopped booting entirely. No POST, no BIOS, just fa

    J
    Jacob Snodgress
    Verified purchaseSeptember 13, 2026
    Solid budget board, keep in mind of AsRock

    I used this for only a few months, adding a Bluetooth/WiFi card after purchase, and it has worked great. I ended up replacing this board with a gigabyte model due to fear of it burning my 9800x3d (look up AsRock killing x3d chips) but I personally have had no issues.

    M
    Mike
    Verified purchaseOctober 13, 2023
    The best board on AM5!

    This board has had many reviews on its potential as a long-term board, similar to AM4 boards from back then. You do lose some things, such as 4 dimm slots; however, that's actually good. You don't get any crazy RGB, sadly, no post-code LED, and the board might be ugly for some people.DDR5 has a big stability issue going on that Intel and AMD are trying to figure out with their motherboard manufacturers and chips. I've personally owned a i9 13900k/DDR5 8000Mt/s system and worked on other people's systems; a normal user would struggle just getting 7400 on their own, and XMP doesn't even work rel

    M
    MeteorBD
    Verified purchaseOctober 24, 2024
    Working great

    Very happy with the purchase. Zero problem. Durable materials. Nvme comes with a free heat spreader and 2 extra screws for it. What I like about it is that it has a red light indicator in case there's a problem with the mobo/cpu/ram/gpu. It makes troubleshooting the issue quite easy. Smoothly updated the BIOS with a USB stick that's been reformatted into MBR and the BIOS flashback button. And on one occasion I had to reset the BIOS because of a faulty uninstallation of the AMD chipset driver which made my pc unbootable. Then the 2-pin cmos jumper came in with a clutch. I didn't have to remove

    S
    Santiago
    Verified purchaseAugust 31, 2026
    Recomendado

    La use para mi ryzen 5 8600g exelente opción
