OVERALL: Very, very pleased and satisfied with the unit and its design. We will never again use a combined unit (blower and insert as a single unit). The thoughtfulness and effectiveness of a remotely mounted blower outside of the living space is brilliant (not really a new concept, but very nicely executed by Awoco).SYSTEM Notes: The design details for connection screws and fittings are extremely sturdy and well designed. Everything necessary for a simple installation is provided, and is of good quality materials. The noise level is SUPERBLY QUIET, so much so that you almost wonder if it's ev
9.2Our score 4 photos30"Wx11-3/4"D Super Quiet Split Insert Range Hood with 6" Blower
The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Ho
About this item
- Super Quiet Innovative Split Insert: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with 1mm thick stainless steel with brush finishing. Perfect for 30” kitchen ranges that fits snug into wood hood. No remote control.
- DUCTED VENT OUTSIDE, 6” ROUND TOP VENT - 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.
- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds approximately (200, 400, 600, up to 800 CFM), sloped view blue highlighted electronic buttons with 2 of 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /150W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 4.5 sones. NOT compatible with wall switch controls & remote controls.

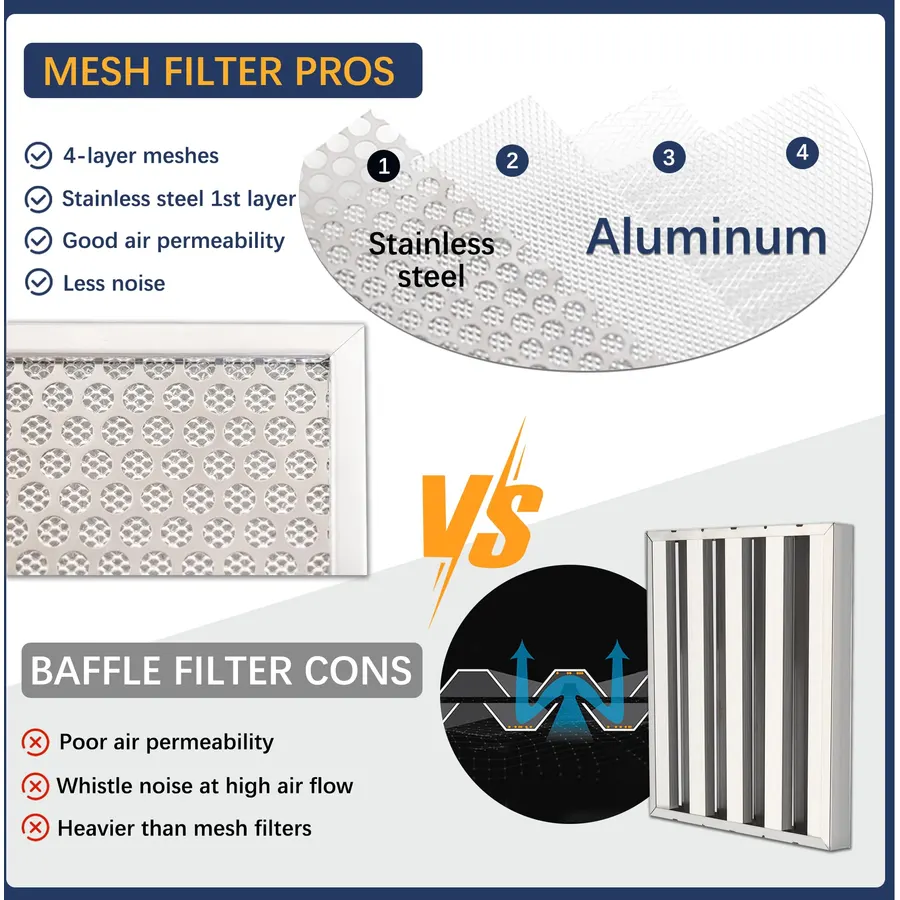

- 2 Dishwasher Safe Mesh Filters: 4 layers dishwasher safe commercial style stainless steel/aluminum mesh filters with built-in latch. Stainless steel for the 1st layer and aluminum for the remaining 3 layers, which provide good air permeability, better suction, and less noise compared to baffle filters. The oil is contained in the mesh filters; no oil holders are needed.

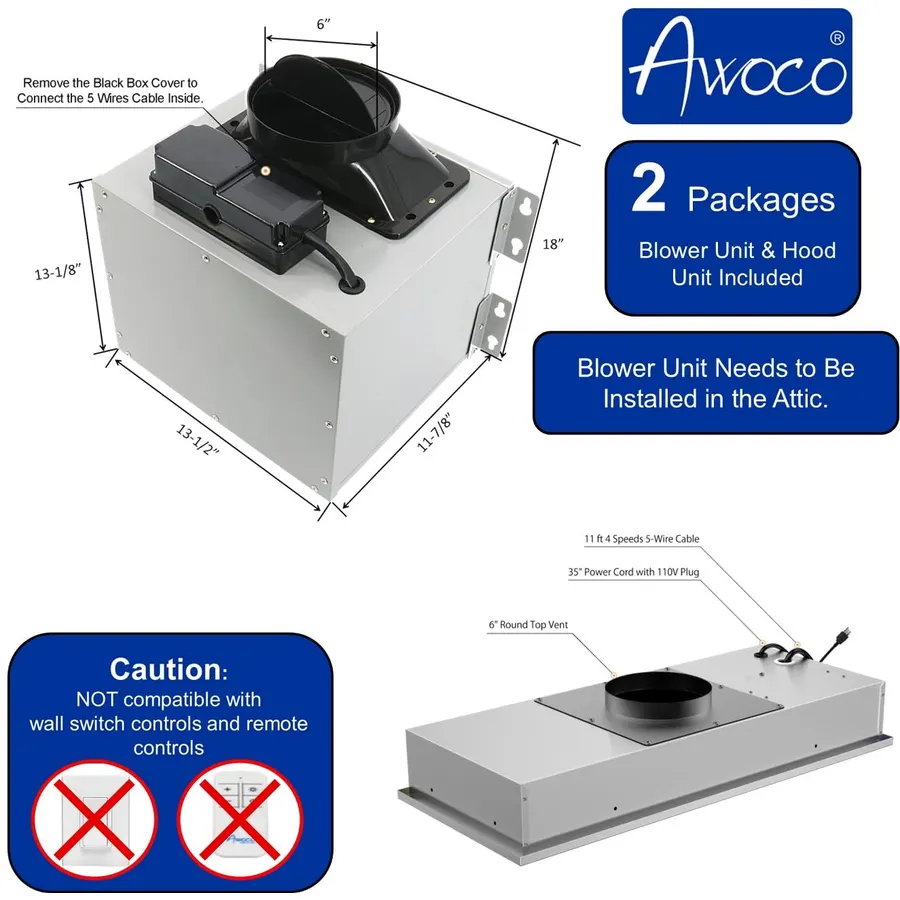

- 1 YEAR USA LIMITED PARTS WARRANTY - ETL Certified. Free parts, repair or exchange within 1 year. Awoco product reputation and supreme customer service is a guarantee. Wood Hood cut-out hole size: 26-1/4" x 10-1/4". Hood unit overall dimensions: 27-3/4"W x 11-3/4"D x 4-1/8"H. Hood weight: 12.5 lbs. Blower unit overall dimensions:13-1/2"W x 11-7/8"D x 18"H. Blower weight: 20.4 lbs.
The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Ho
Ranked #99 in Appliances · 4 things we like
Quick answer The 30"Wx11-3/4"D Super Quiet Split Insert Range by Awoco scores 9.2/10 with us. Amazon owners rate it 4.6 out of 5 across 98 reviews, above the 4.3 average of the 124 range hoods we track. It was listed from $480.00 to $540.00 on Amazon depending on the option when we last checked in September 2026. Key facts: air flow capacity 800 cfm, noise 50 db.
SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove.
Built with 1mm thick stainless steel with brush finishing. Perfect for 30” kitchen ranges that fits snug into wood hood. No remote control.
DUCTED VENT OUTSIDE, 6” ROUND TOP VENT - 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.

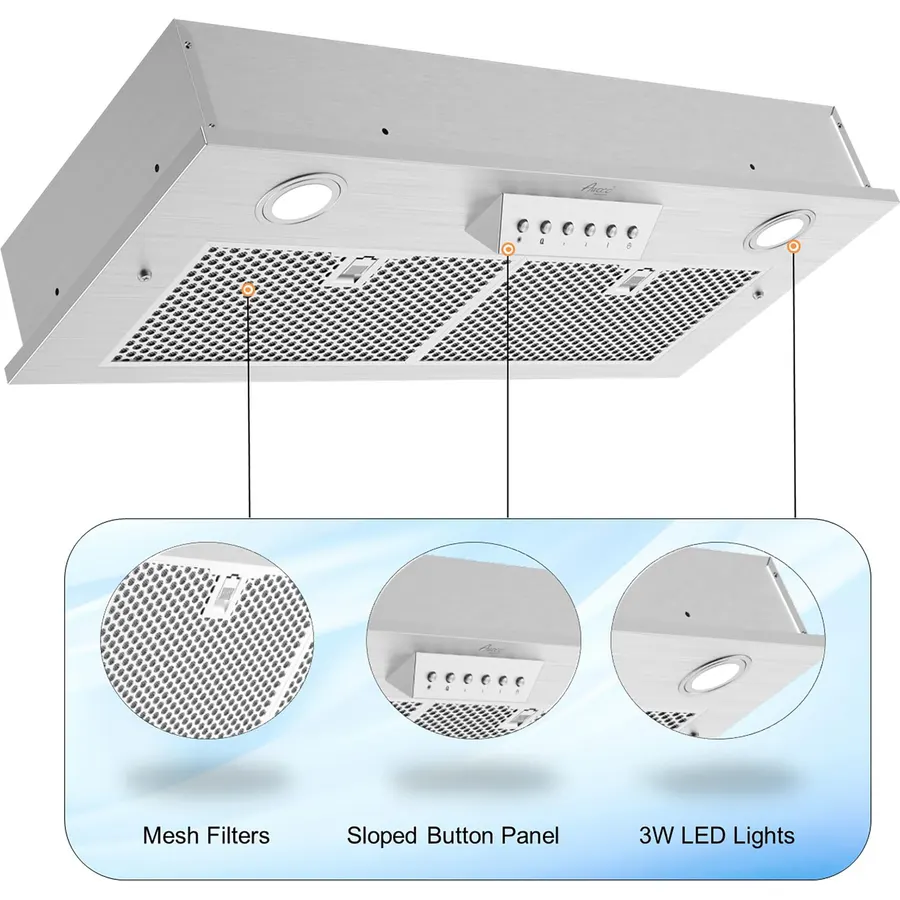

4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds approximately (200, 400, 600, up to 800 CFM), sloped view blue highlighted electronic buttons with 2 of 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the
Do Best Deal is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases. If you buy through links on this site we may earn a commission, at no extra cost to you. Learn more.
Product information
24 specifications| Additional Features | LED Lighting |
|---|---|
| Air Flow Capacity | 800 cfm |
| Noise | 50 db |
| Mounting Type | Insert Mount |
| Controls Type | Push Button |
| Voltage | 120 volts |
| Number of Speeds | 4 |
| Light Source | LED |
| Filter Type | Mesh |
| Ventilation Type | exhaust |
| Control Method | Push Button |
| Color | Silver |
| Finish Types | Brushed |
|---|---|
| Item Form | insert |
| Vent Hood Design | Range Insert Hood |
| Specification Met | ETL |
| Brand Name | Awoco |
| Included Components | Range Hood, Blower Unit |
| Model Number | RH-IT |
| Item Highlight | 800 CFM, Electronic Buttons Control, 4 Speeds Powerful Operation, LED Lights, ETL Certified, Mesh Filters, Stainless Ste |
| Number of Items | 1 |
| Item Type Name | Insert Range Hood |
| Warranty Description | Limited Warranty |
| Item Dimensions D x W x H | 11.75"D x 27.75"W x 4.12"H |
Pros & cons
- SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with 1mm thick stainless steel with brush finishing. Perfect for 30” kitchen ranges that fits snug into wood hood. No remote control.
- DUCTED VENT OUTSIDE, 6” ROUND TOP VENT - 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.
- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds approximately (200, 400, 600, up to 800 CFM), sloped view blue highlighted electronic buttons with 2 of 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /150W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 4.5 sones. NOT compatible with wall switch controls & remote controls.
- 2 DISHWASHER SAFE MESH FILTERS: 4 layers dishwasher safe commercial style stainless steel/aluminum mesh filters with built-in latch. Stainless steel for the 1st layer and aluminum for the remaining 3 layers, which provide good air permeability, better suction, and less noise compared to baffle filters. The oil is contained in the mesh filters; no oil holders are needed.
30"Wx11-3/4"D Super Quiet Split Insert Range: questions & answers
Is the 30"Wx11-3/4"D Super Quiet Split Insert Range worth buying?
Yes, it is one of the stronger picks in its group. We score the 30"Wx11-3/4"D Super Quiet Split Insert Range 9.2 out of 10. Amazon owners rate it 4.6 out of 5 across 98 reviews, above the 4.3 average of the 124 range hoods we track.
How much does the 30"Wx11-3/4"D Super Quiet Split Insert Range cost?
It was listed from $480.00 to $540.00 on Amazon depending on the option when we last checked in September 2026. That is more than the $244.18 median for range hoods in our catalog. Amazon prices change daily, so use the price button on this page to see the current figure.
What options does the 30"Wx11-3/4"D Super Quiet Split Insert Range come in?
Amazon lists 8 options. Size: 28”W 12"D 8” Vent, 28"W 15"D 6" Vent, 36"W 12"D 6" Vent, 36"W 15"D 6" Vent, 36"W 15"D 8" Vent, 28"W 12"D 6" Vent, 36”W 12"D 8” Vent, 28"W 15"D 8" Vent. Pick an option on this page and the button opens exactly that model.
What are good alternatives to the 30"Wx11-3/4"D Super Quiet Split Insert Range?
Similar, well-rated range hoods in our catalog: Awoco 36"Wx15"D Split Insert Ceiling Mount Range Hood (8.8/10, 4.4 stars from 19 owners); Broan-NuTone PM300SS Custom Power Pack Range (9.0/10, 4.5 stars from 241 owners); Dalxo Ultra Quiet 24 Inch Wall Mount Range Hood (9.8/10, 4.9 stars from 22 owners).
Awoco 36"Wx15"D Split Insert Ceiling Mount Range HoodBroan-NuTone PM300SS Custom Power Pack RangeDalxo Ultra Quiet 24 Inch Wall Mount Range Hood
Customer reviews
All reviews on AmazonBreakdown from the 8 most helpful reviews we imported.
Incredibly quiet, pushes a lot of air, easy to install.For this price point you can't get better than this. Spent a lot of time looking for a hood with an inline blower and this was the only one in our price point with good quality. Took some finagling to get it installed and as others have mentioned it really could benefit from another set of screws in the middle or sturdier metal.
I thought it would pull harder and be a little quieter; however, it is the quietest stove hood I've ever seen in person and I did cook salmon on the griddle without the whole house smelling like fish so I'm very pleased! My reason for for stars is that it's a great hood insert and it's inexpensive for its quality and performance. It would have been five stars except that you practically have to completely disassemble it to install it. Running the duct (not included but offered by the manufacturer separately) isn't terribly difficult but can be frustrating for amateurs like me.
I ordered this insert for a hood range. Our HVAC guy hadn’t done a “motor in the attic” before but it turned out great. I’ve had several kitchen range hoods before and the volume is very loud and for the person cooking you don’t get to have conversations or hear people in the next room. This has very little noise (there is still some) but it’s mostly the sound of the air going into the unit. We did a suction test with a paper towel and it moves so much air. There is no audible difference between the different fan levels but it seems to be moving more air (again very quiet). I can have conversa
Having the blower located far away from the kitchen greatly reduces the noise. I went with 8” ducting for better airflow and this proved to be a good choice. On the highest setting the sound level is low enough to carry on normal conversations while standing next to the unit. Lower settings are virtually inaudible. I am thrilled with this unit and although the installation was challenging it was worth the extra effort. My daughter has smell issue so it was important for me to have the ability to clear out cooking smells effectively. The unit itself has worked perfectly for the last 9 months ru
We have an island stove. The previous owners had installed a raise-up vent. It no longer worked but the Dacor stove works fine. We can't remove it to replace it. We have 9-10' ceilings. So my husband used the opening for the floursescent light that had been there and built a housing for the vent. We chose this one to fit into the housing. It's working great. Very quiet and if you put a piece of paper under it, it sucks the paper to the vent so it's nice and strong.
Great high power low noise exhaust fan
Works really well! It's also SO much more quiet than the ones I'm used to, since you mount the motor in the ceiling instead of having it right above the filter. Obviously you can still hear it, but it's not overstimulating anymore.
