Best Micro-ATX Motherboards in 2026: Compact AM4, AM5 and Intel Boards Ranked by Owners

The Prime B550M-A WiFi II is the AM4 board for a PC that lives away from the router: Wi-Fi 6 is built in alongside Gigabit Ethernet, and the HDMI 2.1 output does 4K at 60Hz from a Ryzen 5600G or 5700G without a graphics card, which makes it a popular base for compact living-room and office machines. It keeps the essentials of the TUF, a PCIe 4.0 x16 SafeSlot, two M.2 slots with one at PCIe 4.0 x4, VRM and chipset heatsinks and ASUS’s 5X Protection, and adds ECC memory support and an RGB header. The VRM is smaller than the TUF’s, so it is better matched to a Ryzen 5 or 7 than a 12-core, and the rear panel still carries DVI and D-Sub. Owners rate it 4.5 stars from 1,050 reviews.

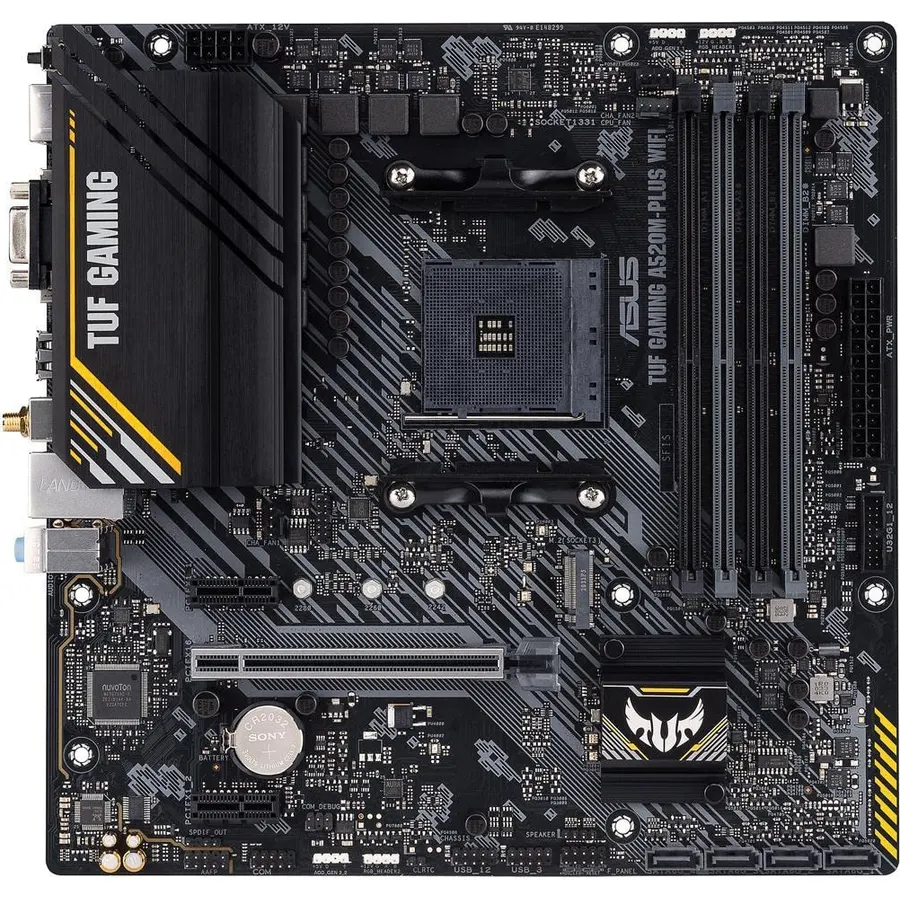

A520 is the budget AM4 chipset, and the TUF Gaming A520M-PLUS WiFi is the best-built example: a large VRM heatsink and PCH heatsink, LANGuard on the Ethernet, a BIOS FlashBack button that updates firmware from a USB stick with no CPU installed, Wi-Fi, and DisplayPort plus HDMI for an APU. The compromises are the chipset’s: the graphics slot and the single M.2 slot are PCIe 3.0, and the CPU cannot be overclocked, though Precision Boost works normally. For a Ryzen 5 5600 with a mid-range graphics card none of that costs measurable performance. The Wi-Fi is the older 802.11ac standard. Owners rate it 4.6 stars from 1,400 reviews, and it is the board to buy when the budget has to stretch to a better graphics card.

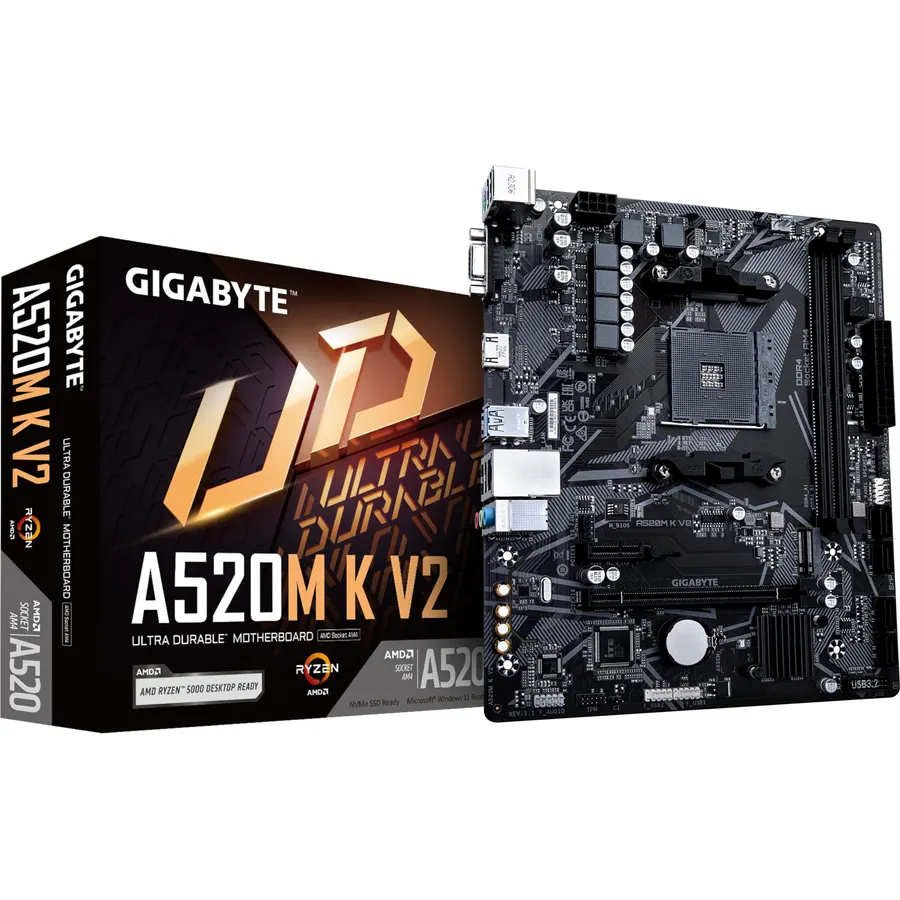

The A520M K V2 is the board for the tightest budget: a two-slot DDR4 A520 board with a PCIe x16 slot, one M.2, HDMI and D-Sub video and USB 3.2, at a price that is often less than a game. Gigabyte’s listing is nearly empty, which tells you what kind of product it is, but 1,700 owners rate it 4.4 stars, and the typical build is a Ryzen 5 5600 or 5600G with 16GB in two sticks for a child’s first PC, a home office machine or a budget 1080p gaming box. Two memory slots mean 32GB is the practical ceiling and there is no room to add a stick later; A520 means PCIe 3.0 and no overclocking; and there is no Wi-Fi. If the budget allows another step up, the TUF A520M-PLUS WiFi above adds the heatsinks, Wi-Fi and FlashBack that make life easier.

The B550M K is the cheapest way to get the B550 chipset in a compact build, and the chipset is what you are paying for: a PCIe 4.0 x16 slot, one PCIe 4.0 and one PCIe 3.0 M.2 slot, four DDR4 slots with XMP, and Q-Flash for BIOS updates, for about what Gigabyte charges for its A520 boards. The 3 + 3 phase VRM is the giveaway: it is enough for a Ryzen 5 5600 or a 65W Ryzen 7 5700X but not the right home for a 5900X or an overclocked 5800X, where the TUF B550M-PLUS’s 8 + 2 stages earn their price. There is no Wi-Fi and the Ethernet is Gigabit. Owners rate it 4.4 stars from 1,100 reviews, mostly for Ryzen 5 builds that wanted PCIe 4.0 storage and a second M.2 without paying for a gaming board.

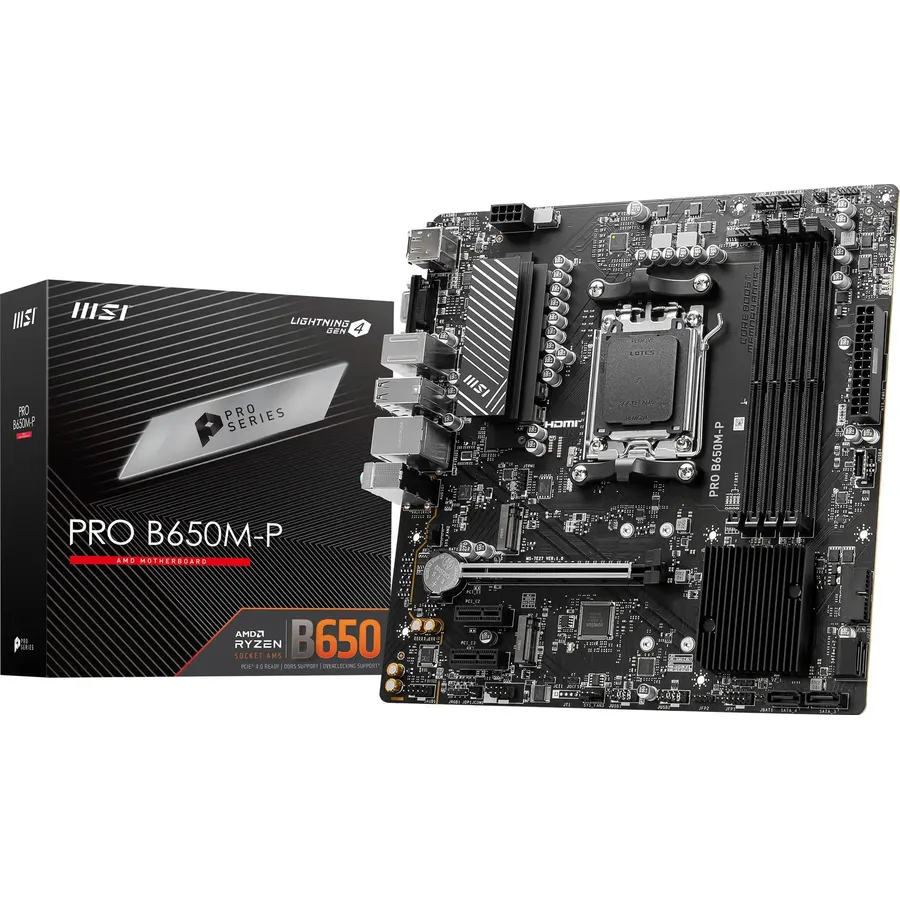

The MSI Pro B650M-P is the AM5 board for people who want a compact Ryzen 7000 or 9000 build without giving up memory slots: it has four DDR5 slots rated to 7200MHz and beyond with 192GB maximum, where most micro-ATX AM5 boards have two. It also has two M.2 slots, four SATA ports, 2.5G Realtek Ethernet, a 6-layer PCB and MSI’s Steel Armor on the graphics slot, with HDMI, DisplayPort and VGA for integrated graphics. Everything is PCIe 4.0, which is fine for any current card and for all but the newest SSDs, and there is no Wi-Fi. MSI lists Ryzen 7000 and 8000 support with 9000 arriving by BIOS update. It has 290 reviews at 4.4 stars, a smaller sample than the AM4 veterans, but a consistent one for a board that does the fundamentals properly.

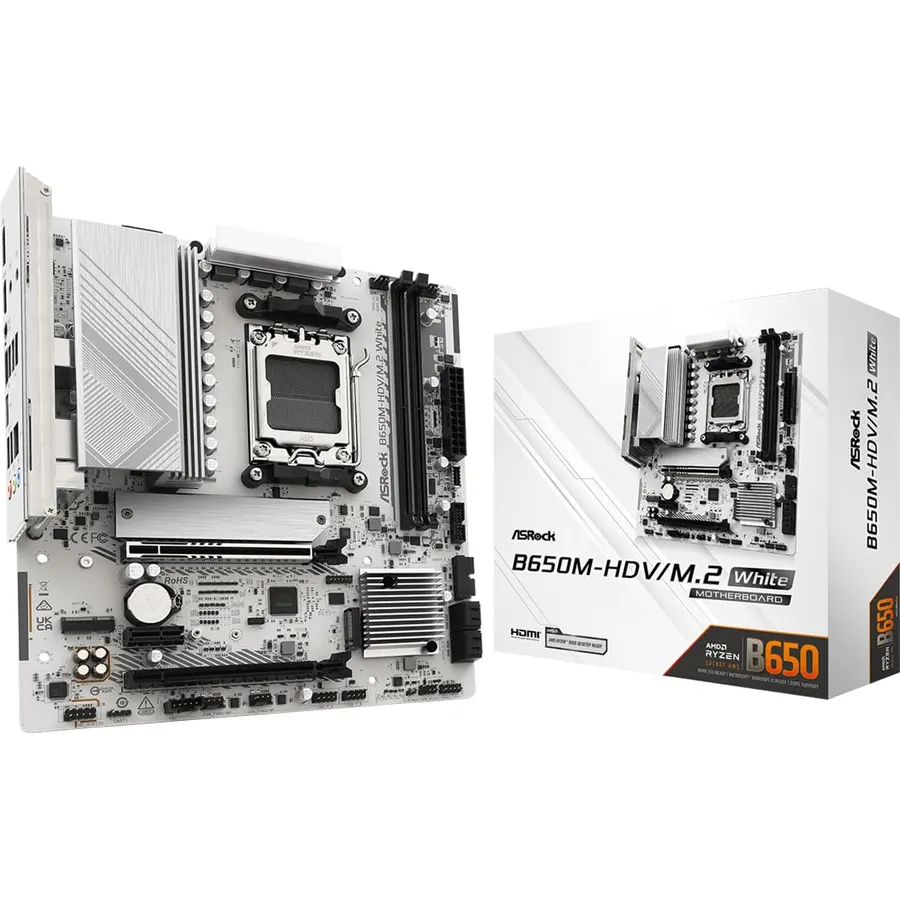

The B650M-HDV M.2 White is ASRock’s answer to the question of how cheaply you can get PCIe 5.0 on AM5: a white micro-ATX board with a PCIe 5.0 x16 slot, a Gen 5 M.2 slot alongside a Gen 4 one, 8 + 2 + 1 Dr.MOS phases, 2.5G Ethernet, Type-C front and rear, BIOS Flashback and a Key E slot for an optional Wi-Fi card. It supports Ryzen 9000, 8000 and 7000 and DDR5 to 8200MHz with overclocking. The trade-offs are two DDR5 slots, so buy the capacity you need in one kit, and a 4.1-star average from 430 owners, the lowest on this page; the critical reviews describe BIOS and memory compatibility issues on arrival, which Flashback and a current BIOS usually resolve. ASRock also notes it may not fit some prebuilt systems. For a white compact AM5 build on a budget, it is still the specification leader.

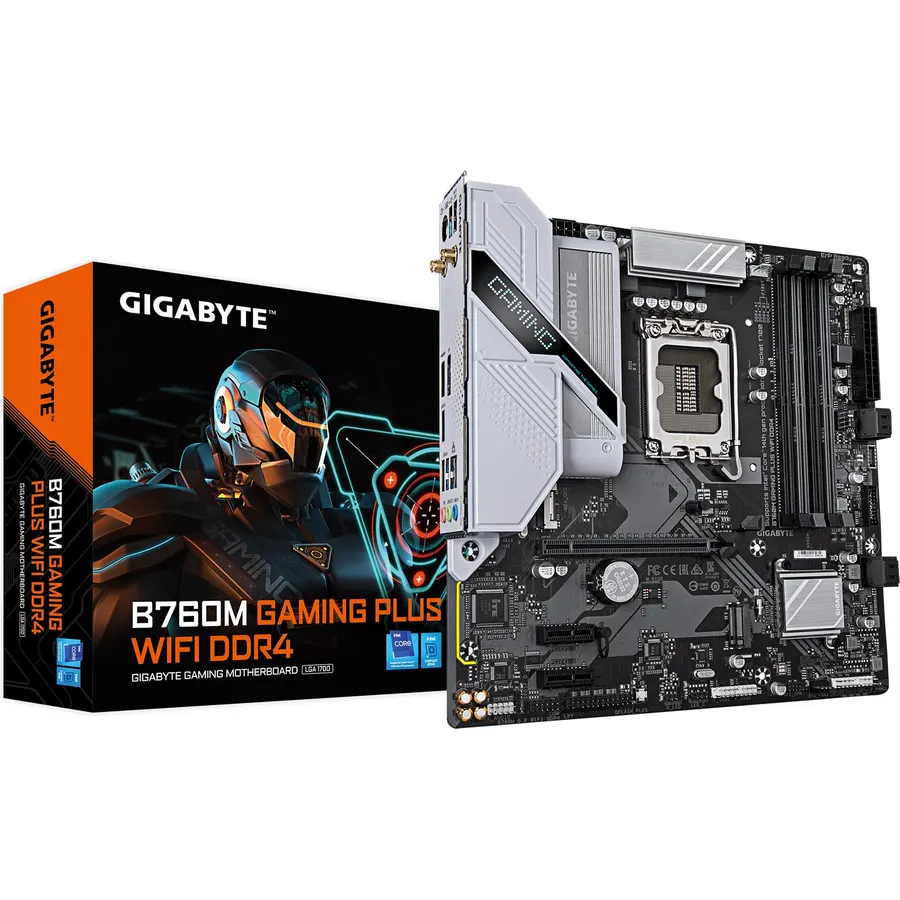

The B760M Gaming Plus WiFi DDR4 is the compact board for an Intel 12th, 13th or 14th generation build that wants to keep its DDR4 memory: four DDR4 slots with XMP, a PCIe 4.0 x16 slot with reinforcement and an EZ-Latch release, two PCIe 4.0 M.2 slots, Wi-Fi, a front USB 3.2 Type-C header and Q-Flash Plus for BIOS updates without a CPU. The hybrid 4 + 1 + 1 power design with enlarged heatsinks is sized for a Core i5-12400 or 13400 or a 65W i7, which is also the sensible CPU for a micro-ATX case; a 14900K wants a bigger board. DDR4 on a new build is a budget choice, and the Ethernet is Gigabit. Owners rate it 4.3 stars from 335 reviews, and for a Core i5 compact gaming PC it is a tidy, well-equipped base.
